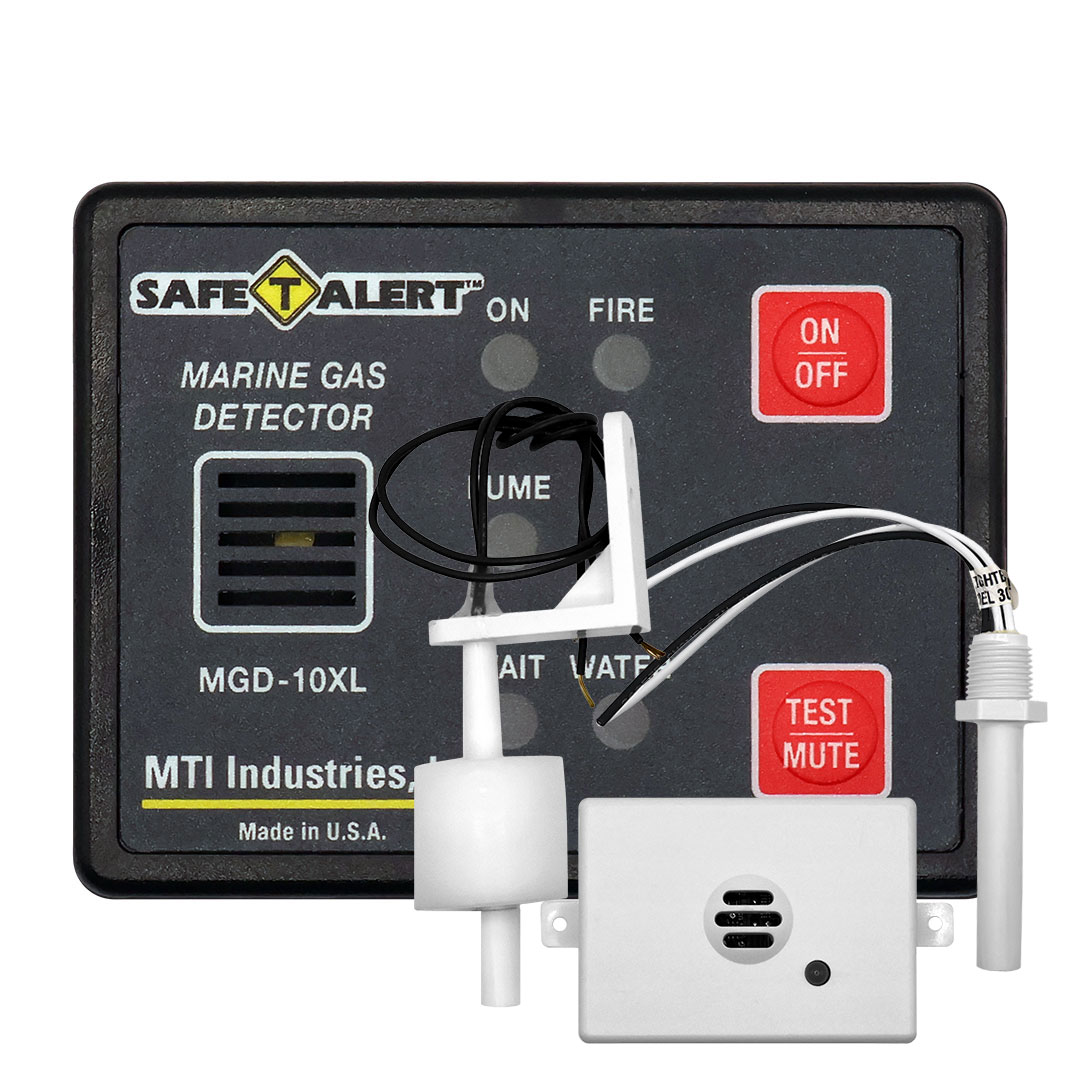

Surface Mount Fume, Fire and Flood Detector

$245.00

Surface Mount Fume, Fire and Flood Detector

SKU: SA-10XL Category:

Surface Mount Fume, Fire and Flood Detector – Gas Fume, Fire, Bilge Water Alarms Features

  • Fume – Protection against accidents caused by gas/propane spills or leaks.
  • Fire – thermal sensor alarms when fire conditions exist.
  • Flood – Alerts you to bilge flooding and pump problems.
  • Sight and Sound Alarm Indicator. Dual signaling sounds an alarm / activates warning light.
  • Smart Fume Sensor. Detects the build up of explosive gases.
  • Thermal Sensor. Monitors for high heat and heat from fire.
  • Water Sensor. Monitors bilge for high water.
  • On/Off/Test. For one touch analysis of detector performance.
  • Money Saving. Qualify for marine insurance discounts.
  • Marine Proven. Exclusively designed for the harsh marine environment.

Download Manual

Surface Mount Fume, Fire and Flood Detector Operating Specifications

  • Power 12 vDC, operational range +/- 15%
  • 200 milliamp (.2 amp.) current draw
  • Alarm Trigger: 20% or less of the lower explosive limit of gasoline, propane and CNG
  • Fumes Detected: Gasoline, hydrogen from batteries, propane, alcohol, acetone, CNG and other explosive vapors
  • Fire Alarm Trigger: 180 degree Thermal Switch
  • Water sensor triggers during high bilge water conditions
  • Size: 3-1/4’W x 2-3/4’H x 3/4’D

SA-10XL Wiring Diagram
