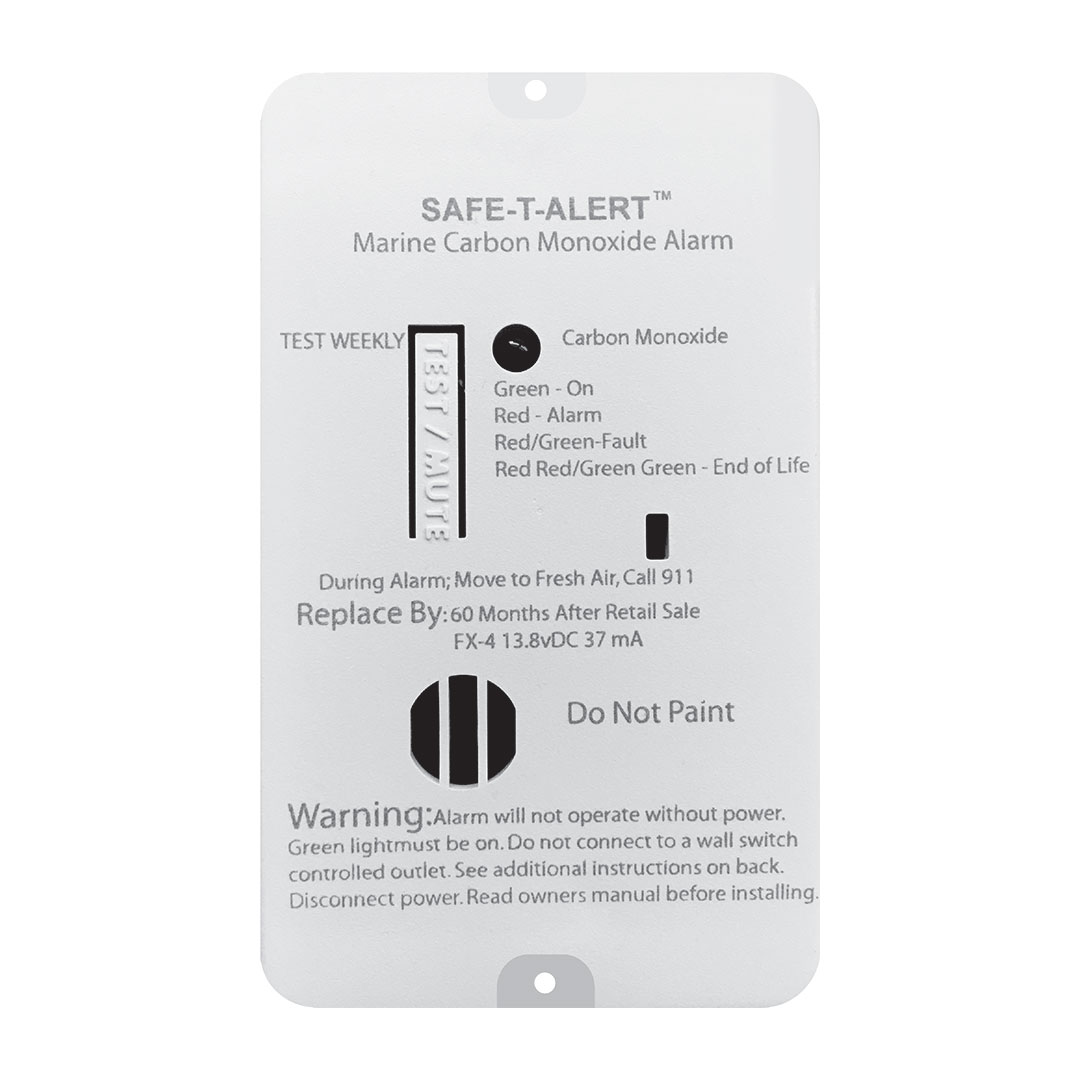

FX-4 Marine Surface Mount


Slim Vertical Carbon Monoxide Alarm Surface Mount

SKU: FX-4 Category:

FX-4 Marine Surface Mount – Marine Carbon Monoxide Alarms Features

  • Low Voltage Hard Wired Alarm.
  • Conforms To ANSI / UL STD 2034 – Marine. Meets ABYC A-24. NMMA Listed Component.
  • Most Reliable. Boats DC electrical system or marine grade batteries supply power to the alarm. No missing or dead batteries to replace.
  • Proven Sensing Technology. Prevents nuisance alarms which could lead to confusion and disconnected detectors.
  • Advanced Technology. Alarm Mute button with advanced technology that silences alarm while boat is ventilated. Rapid recovery sensor resets when silenced or reactivates alarm if dangerous levels of CO remain.
  • Loud. 85 dB alarm alerts you to CO danger.
  • Case Size. 2.5″W x 3.5″H x 1.25″D.
  • Replaces Fireboy-Xintex CMD-4M and CMD-3M.

Download Manual

FX-4 Marine Surface Mount Operating Specifications

  • Conforms To ANSI / UL STD 2034*
  • * Testing Laboratory: ETL/Intertek
  • Alarm Point: 400 PPM 4-15 Minutes
  • Low voltage power warning at 8 Volts
  • Power Supply and Current Draw: 37 mA @ 13.8 VDC
  • Operational Range: 13.8 Volts +/-15%
  • Operating Temperature: -40°F to +158°F
  • Case Size: 2.5″W x 3.5″H x 1.25″D – Mounting Bracket .25″D
Where to Install Boat
