62 Series Marine Surface Mount w/Relay

$94.95

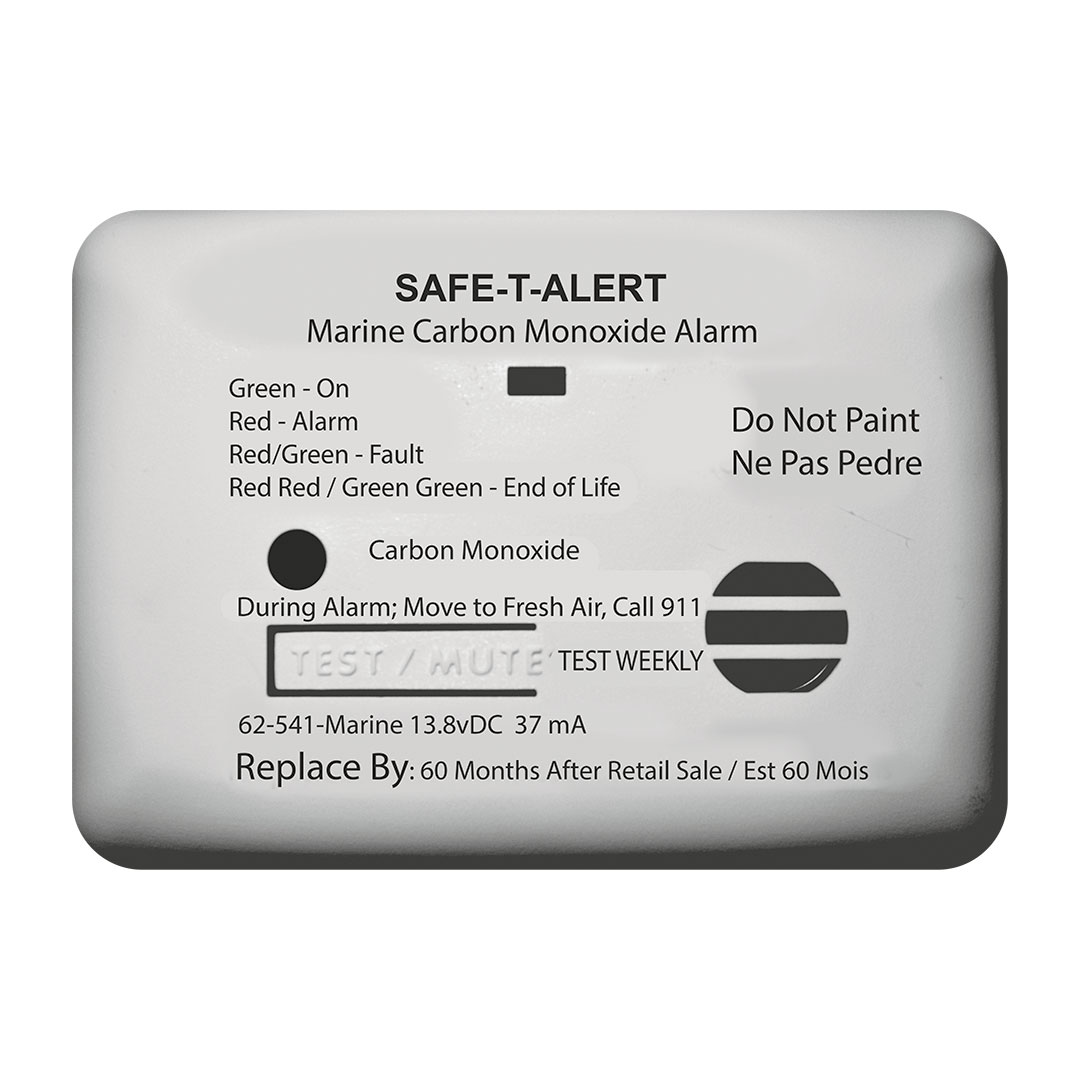

Marine Mini Carbon Monoxide Alarm Surface Mount w/Relay

SKU: 62-541-Marine-R Category:

62 Series Marine Surface Mount w/Relay – Marine Carbon Monoxide Alarms Features

  • 62-541-R-Marine includes normally closed relay. Use to turn on exhaust fans, remote horns/lights/signals or connect to alarms systems.
  • NMMA Listed Component.
  • Space Saving design works in harsh marine environment.
  • Works in extreme temperatures. Only marine CO alarm listed to operational temperatures of -40°F to 158°F. Alarm has consistently held up in the excessive cold and heat due to high quality sensor.
  • No False Alarms due to new boat smell, outgassing or non-hazardous levels of hydrocarbon gases encountered while boating. Interconnect and generator shut off alarms available.
  • Low Current Draw(37 mA). Innovative micro current circuit saves battery power for the boater.
  • Alarm Mute with Auto Reset. With a press of a button, the mute circuit will temporarily silence the alarm while the boater ventilates the cabin. Alarm will reactivate if it still senses dangerous levels of CO.
  • End of Life Signal alerts boater to replace the alarm after 5 years of service.
  • Memory Scan. Retains the CO level that activated the alarm. After ventilation, it is impossible to know what the CO level was unless the detector has memory.
  • Rapid recovery sensor resets when silenced or reactivates alarm if dangerous levels of CO remain.

Download Manual

62 Series Marine Surface Mount w/Relay Operating Specifications

  • Conforms To ANSI / UL STD 2034*
  • * Testing Laboratory: ETL/Intertek
  • Alarm Point: 400 PPM 4-15 Minutes
  • Low voltage power warning at 7 Volts
  • Power Supply and Current Draw: 37 mA @ 13.8 VDC
  • Operational Range: 13.8 Volts +/-15%
  • Low voltage power warning at 7 Volts
  • Operating Temperature: -40°F to +158°F
  • Case Size: 3.5″W x 2.5″H x 1.25″D – Mounting Bracket .25″D
Where to Install Boat
